Description:

---

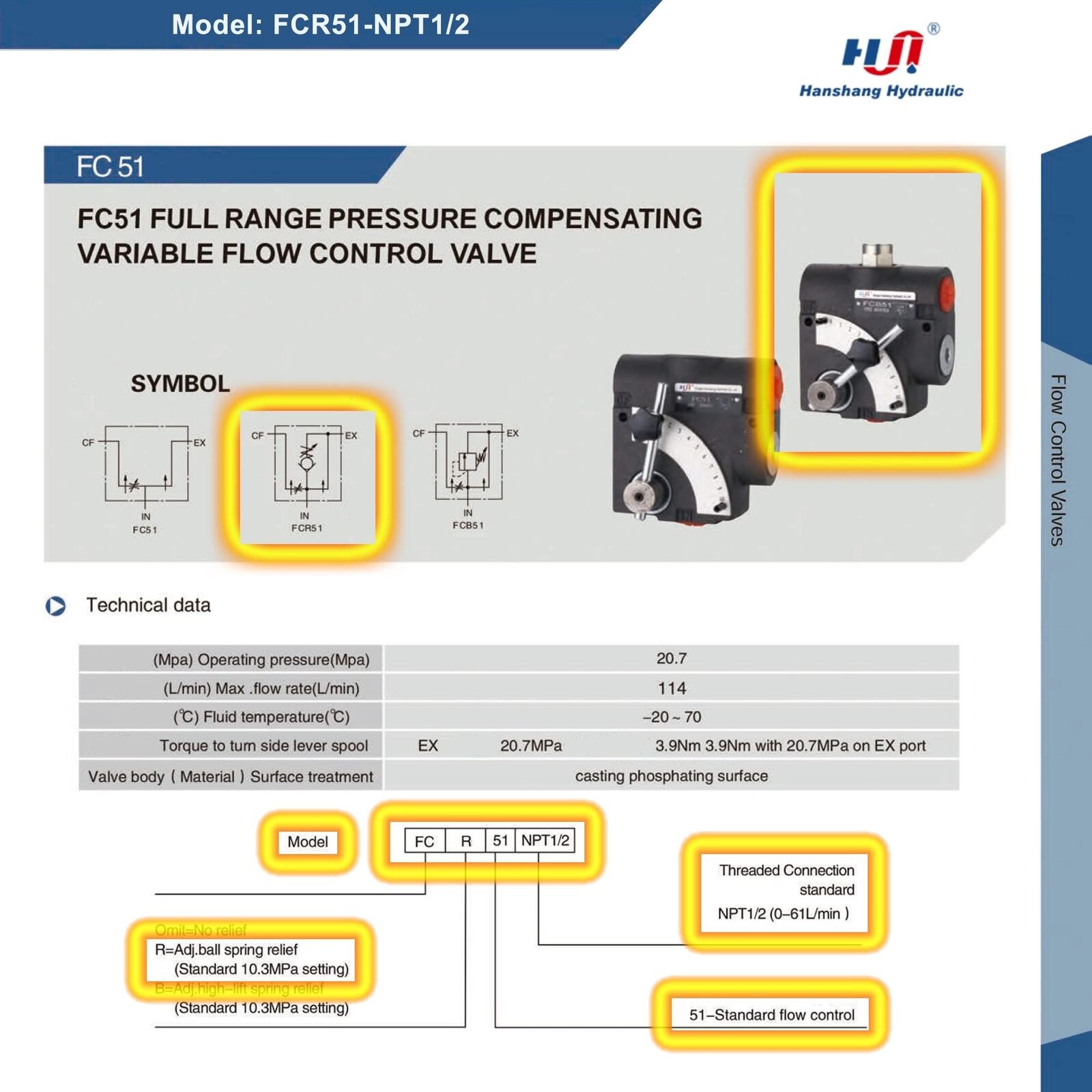

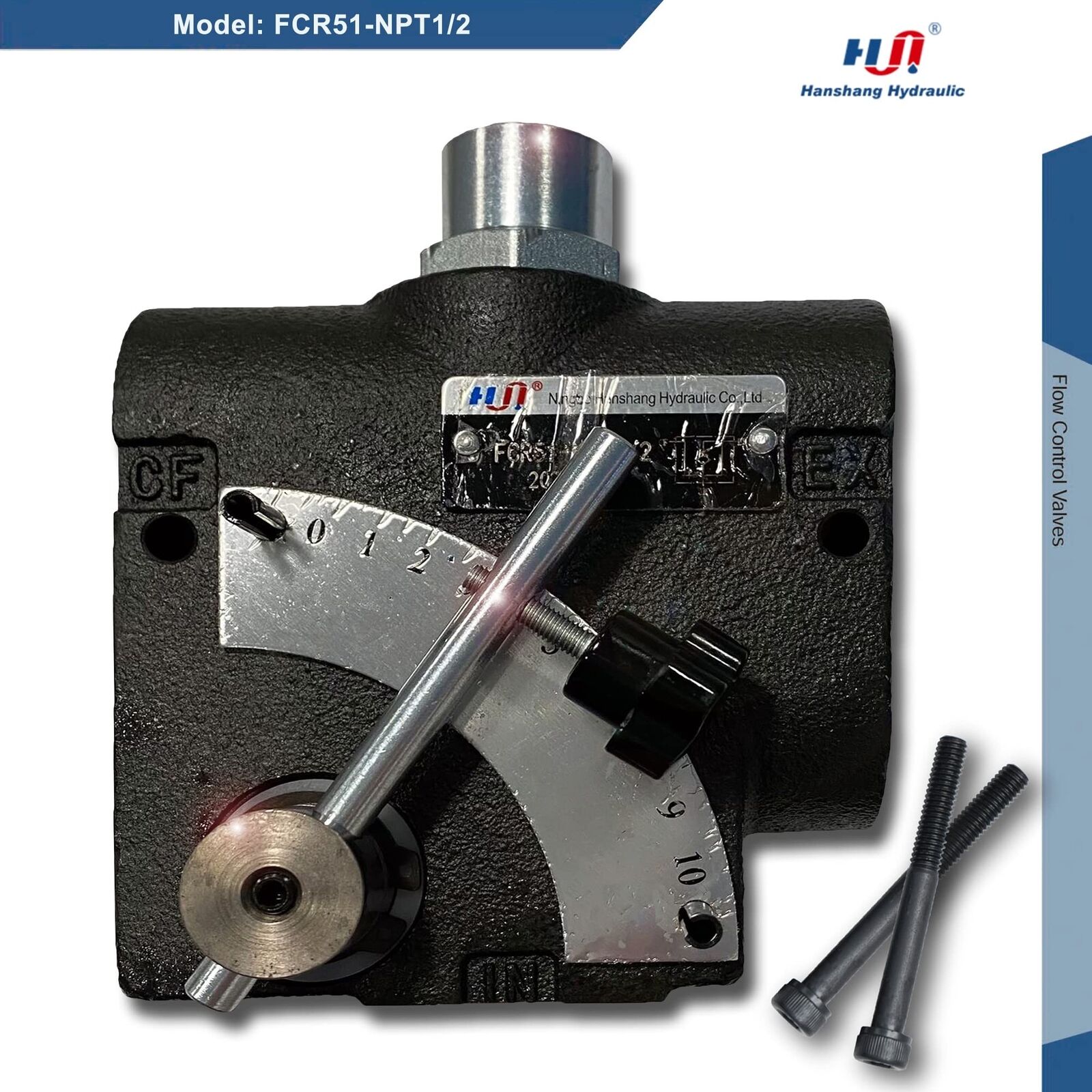

Hydraulic Adjustable Flow Directional Control Valve (1/2" NPT Port, 30 GPM, FCR51 with Relief)

Product Features

• Size: 1/2" NPT Port, 30 GPM
• Style: FCR51 with Relief
• Brand: Hanshang Hydraulic
• UPC: 811129032939
• EAN: 0811129032939
• MPN: Does not apply
• Side-ported adjustable flow control valve used to stop or start a hydraulic motor or cylinder
• Top adjustable Ball Spring Relief Port, excess flow will be returned to tank or or used to power another function
• Can vary speed over wide range, will maintain constant speed evenly regardless of load variation after setting

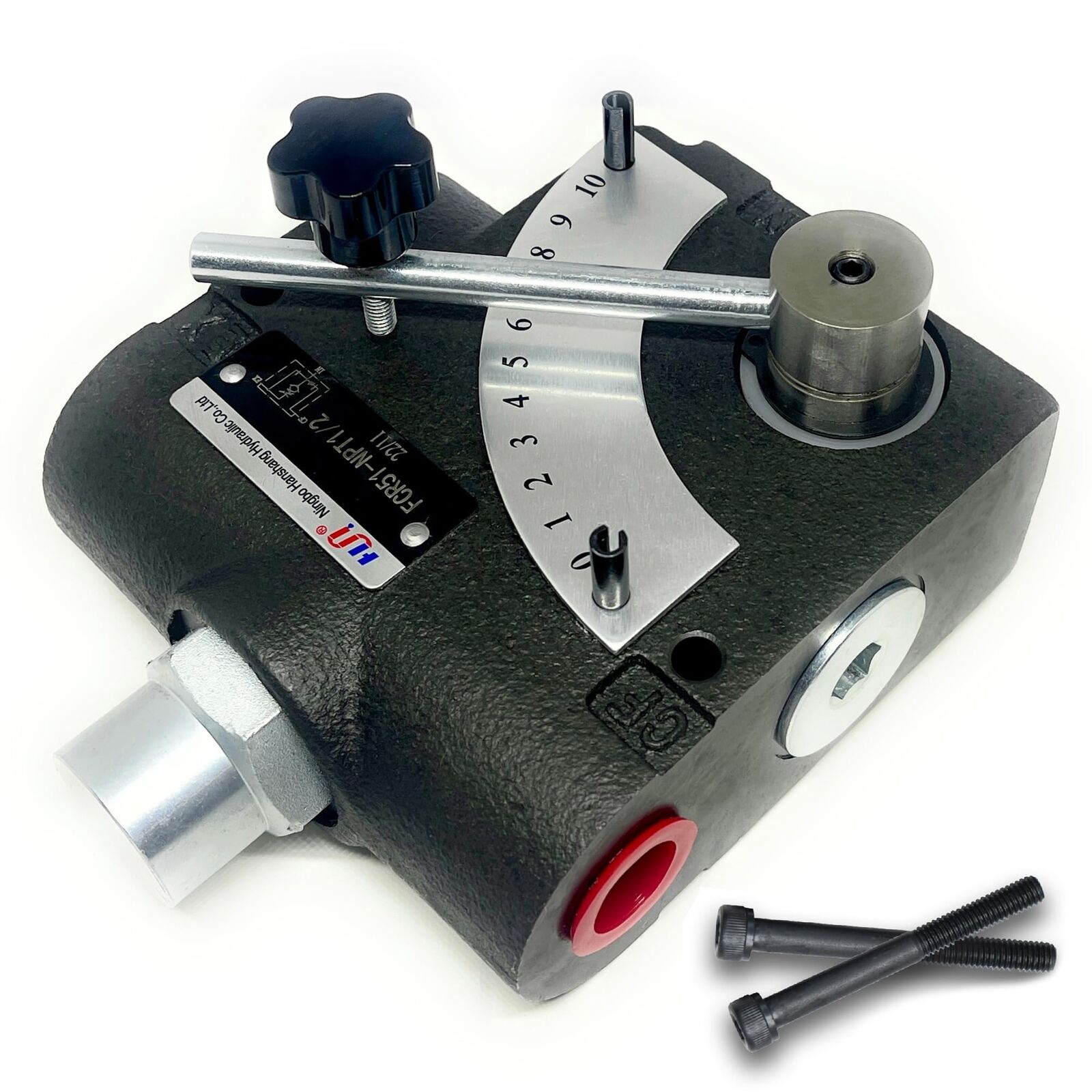

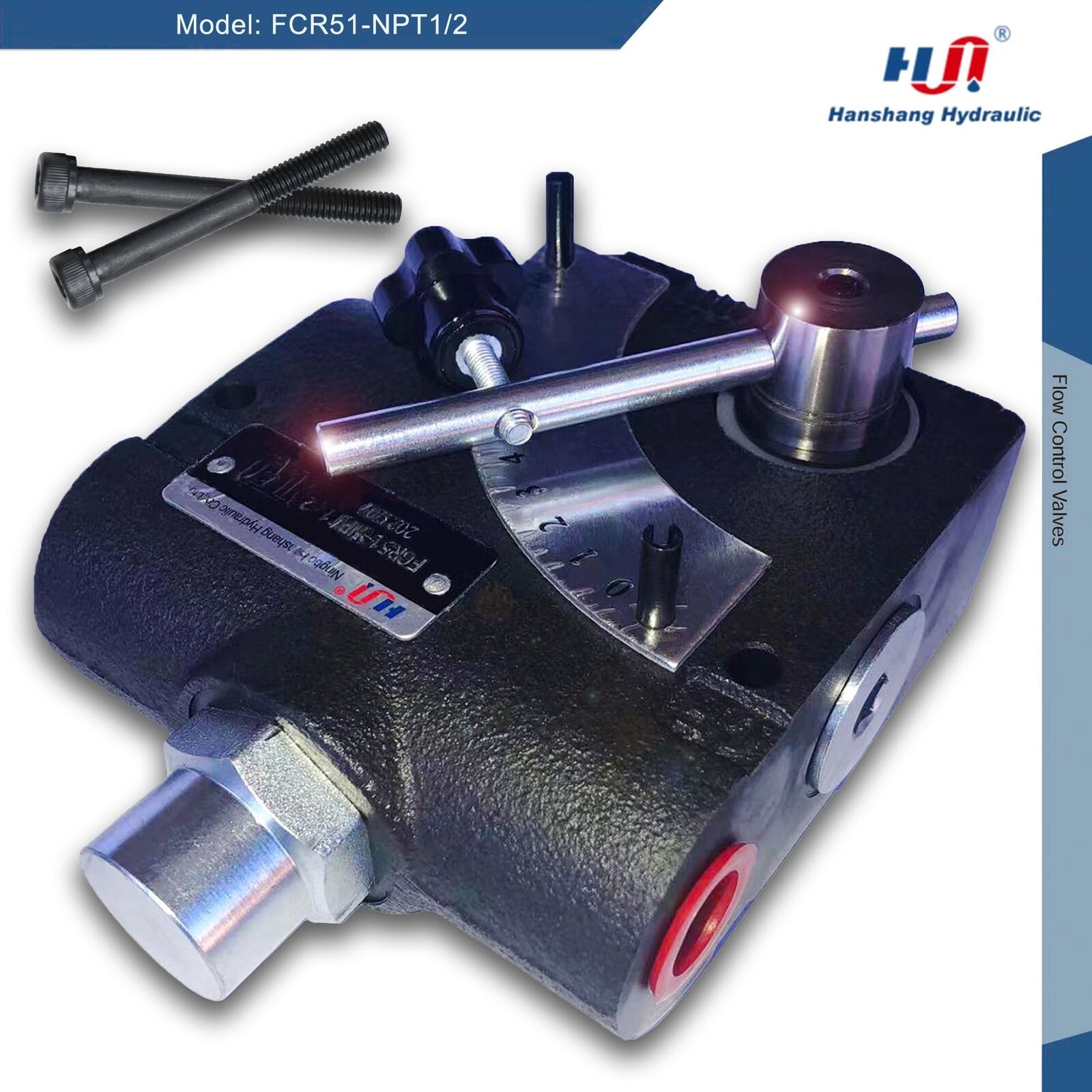

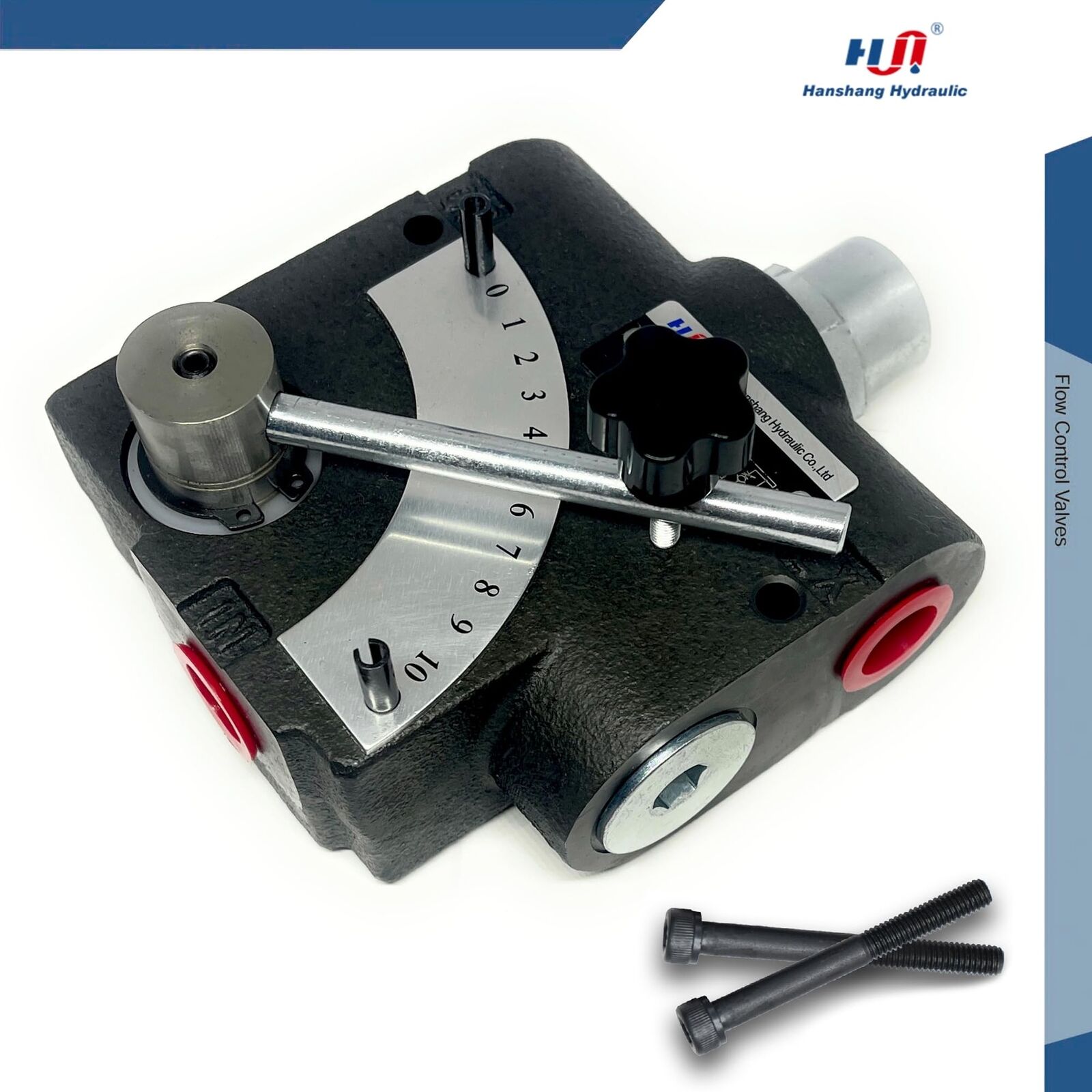

• Replacement of FCR51-1/2 or PFC51-1/2, Weight: 5.9 LB, Durable and Safe Cast Iron Body,
• Max Flow Rate: 30 GPM, adjustable Flow Rate: From 0 to 30 GPM

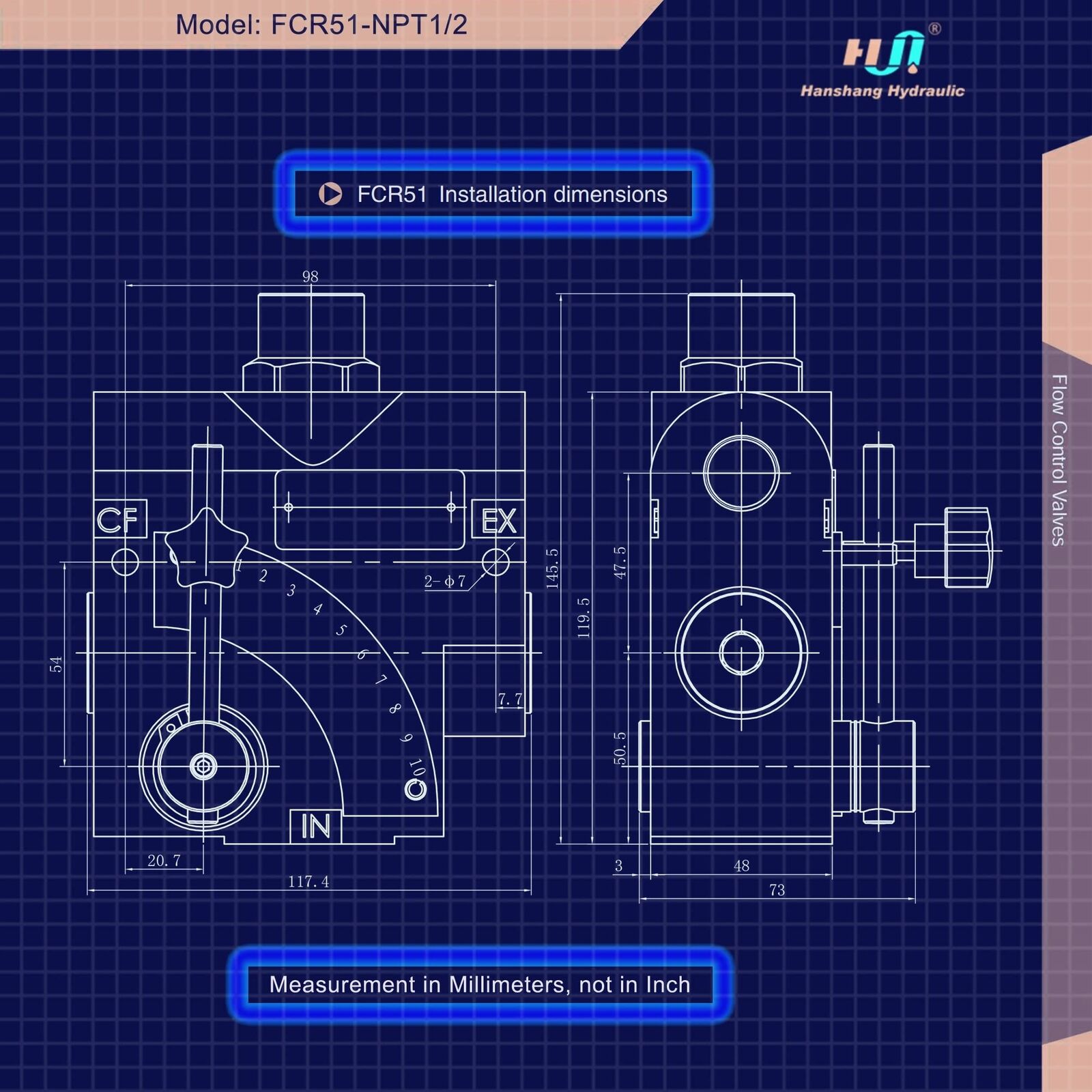

• Port Size: 1/2 NPT, Max Working Pressure: 3002.28 PSI / 20.7 Mpa

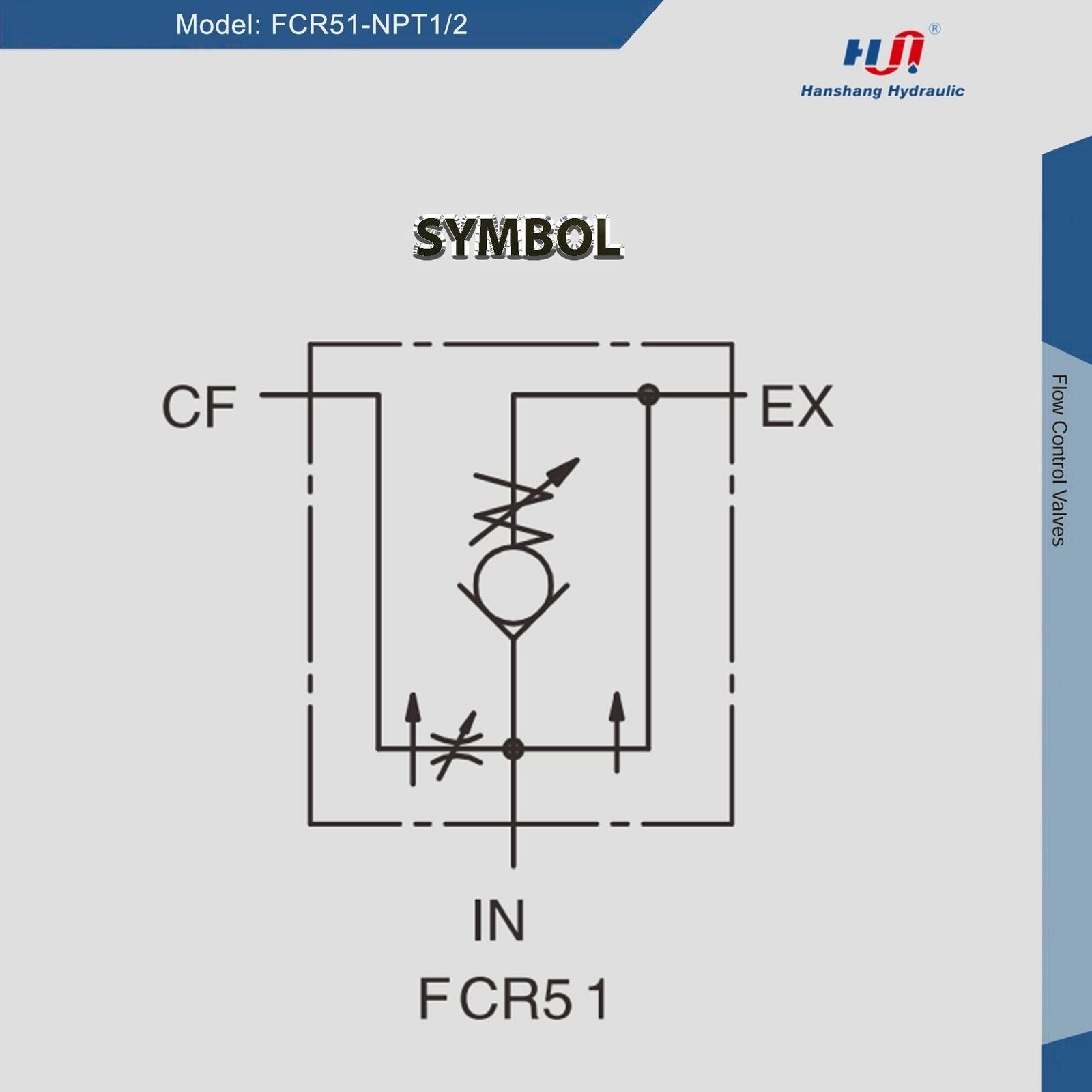

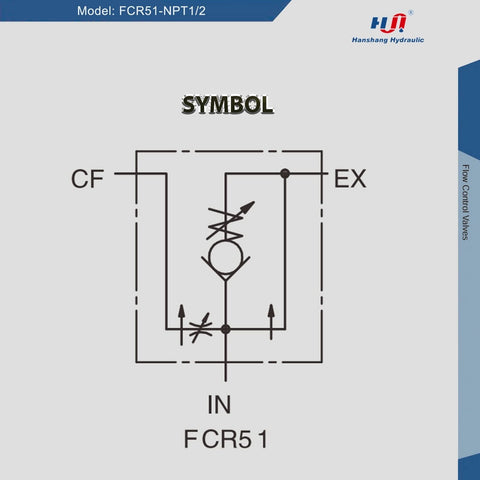

• Port IN ( Inlet Port )
• Port CF ( Controlled Flow ): Flow from this port is pressure compensated and proportional. Depending on the position of the lever, the flow can be from closed to fully open
• Port EX ( Excess Flow ): Outflow from this port if pressure compensated. If the lever is set to 0, all traffic will flow out of this port
• Port Top Relief : Adjustable Ball Spring Relief Port

---

---
