Description:

---

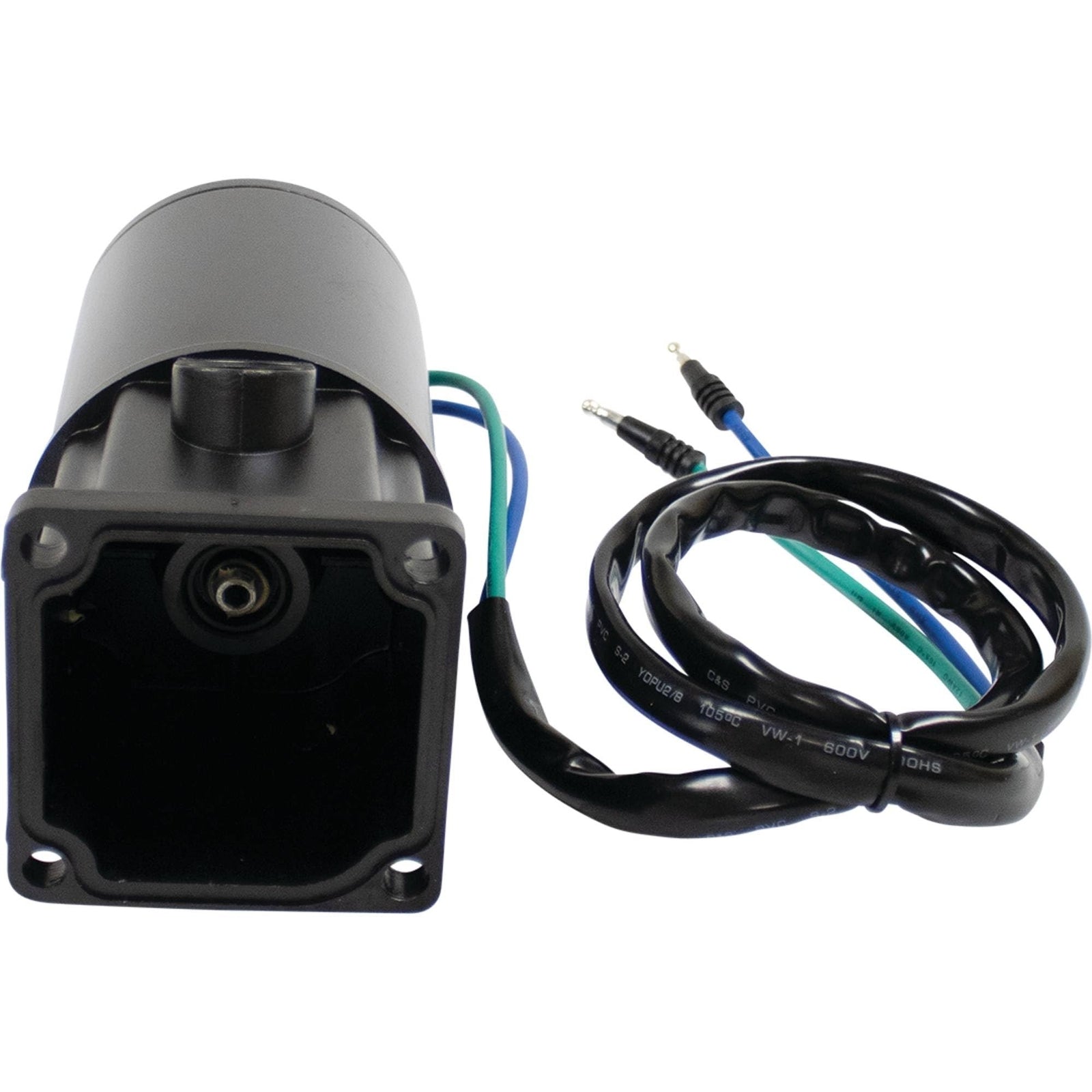

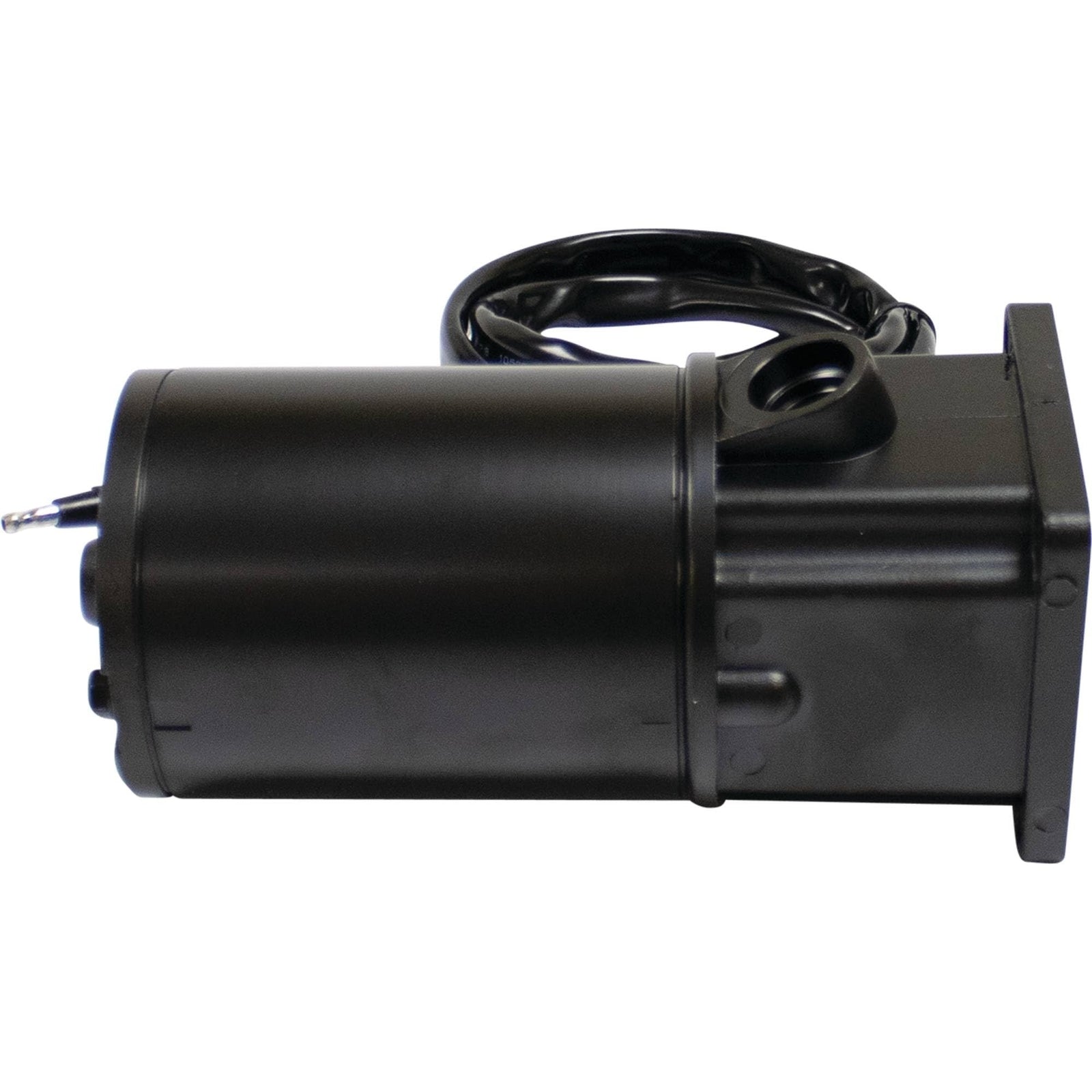

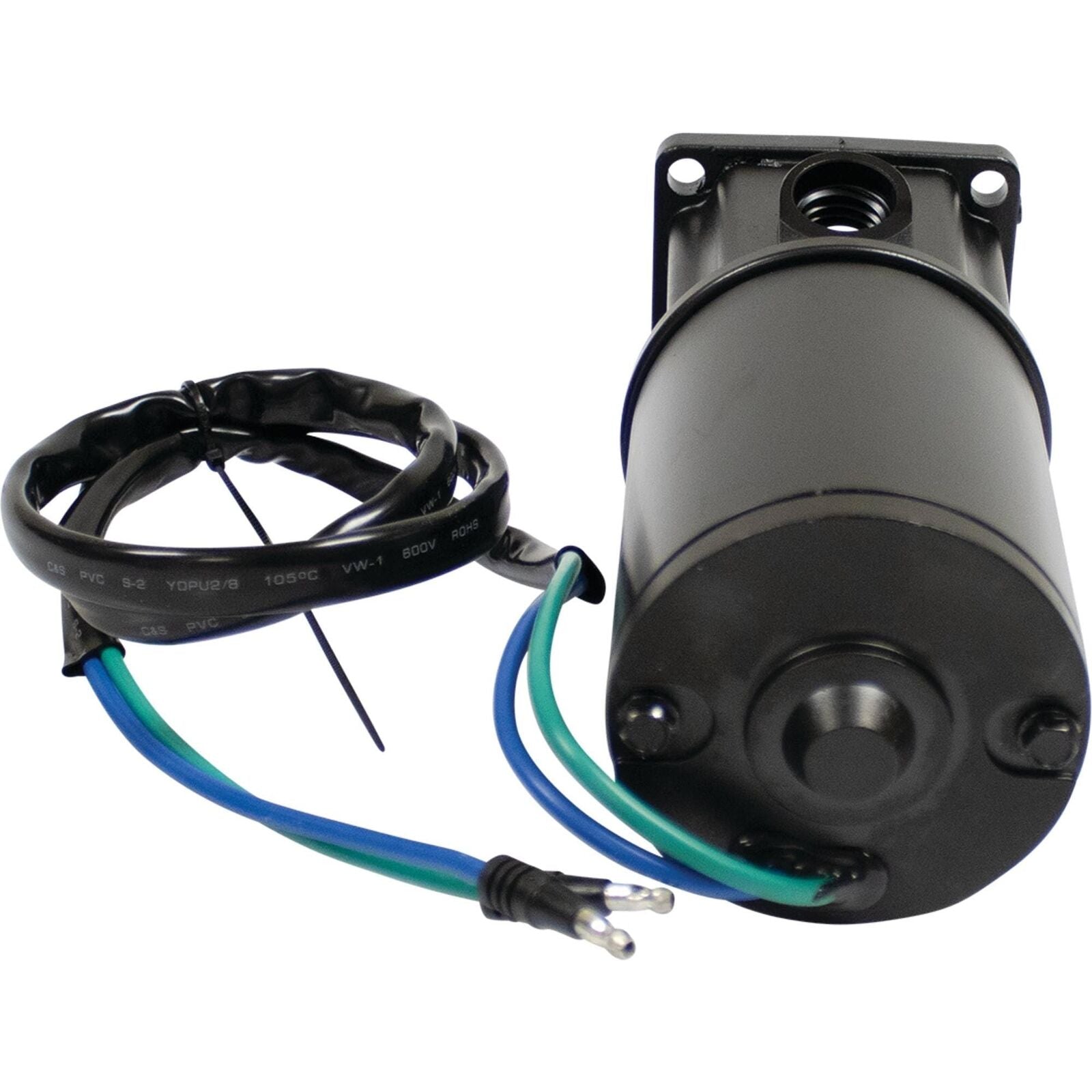

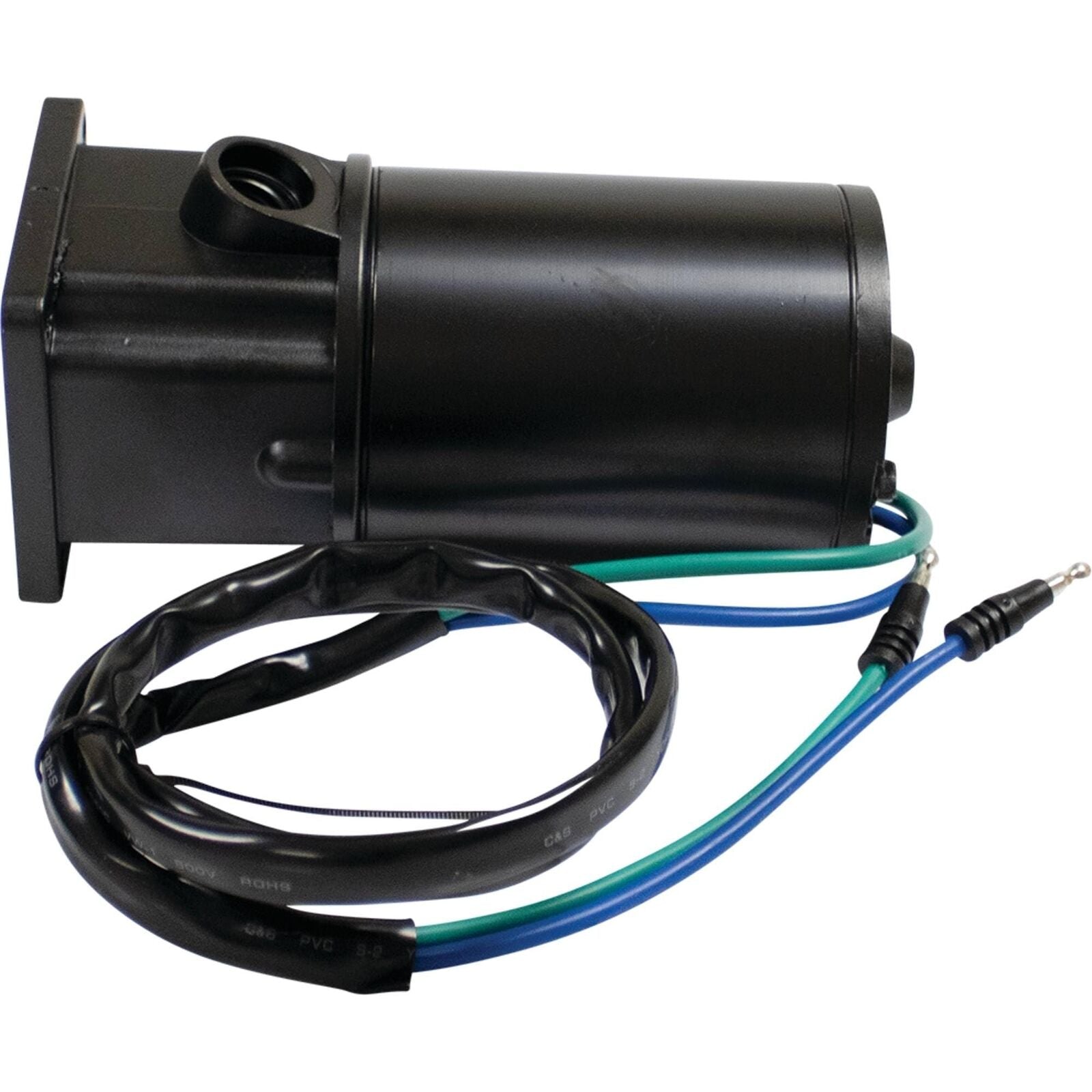

New DB Electrical TRM0047 Tilt & Trim Motor Compatible With/Replacement For Force 75EL, 75ELPT, 90ELPT, 90EXLPT, 20ELPT, 120EXLPT 1996-1999, Mercury Marine All Models All 809885A1, 809885A2, 10827N

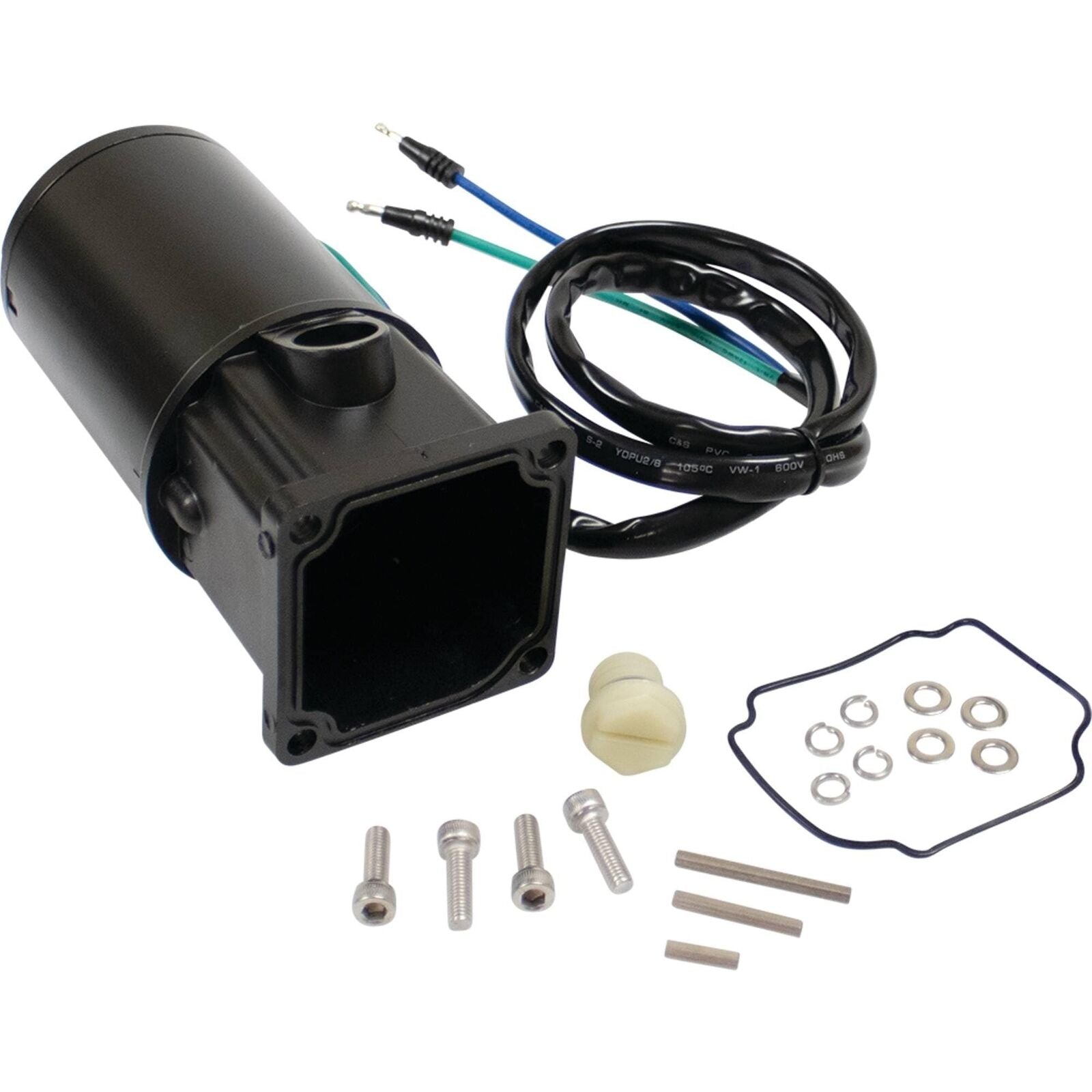

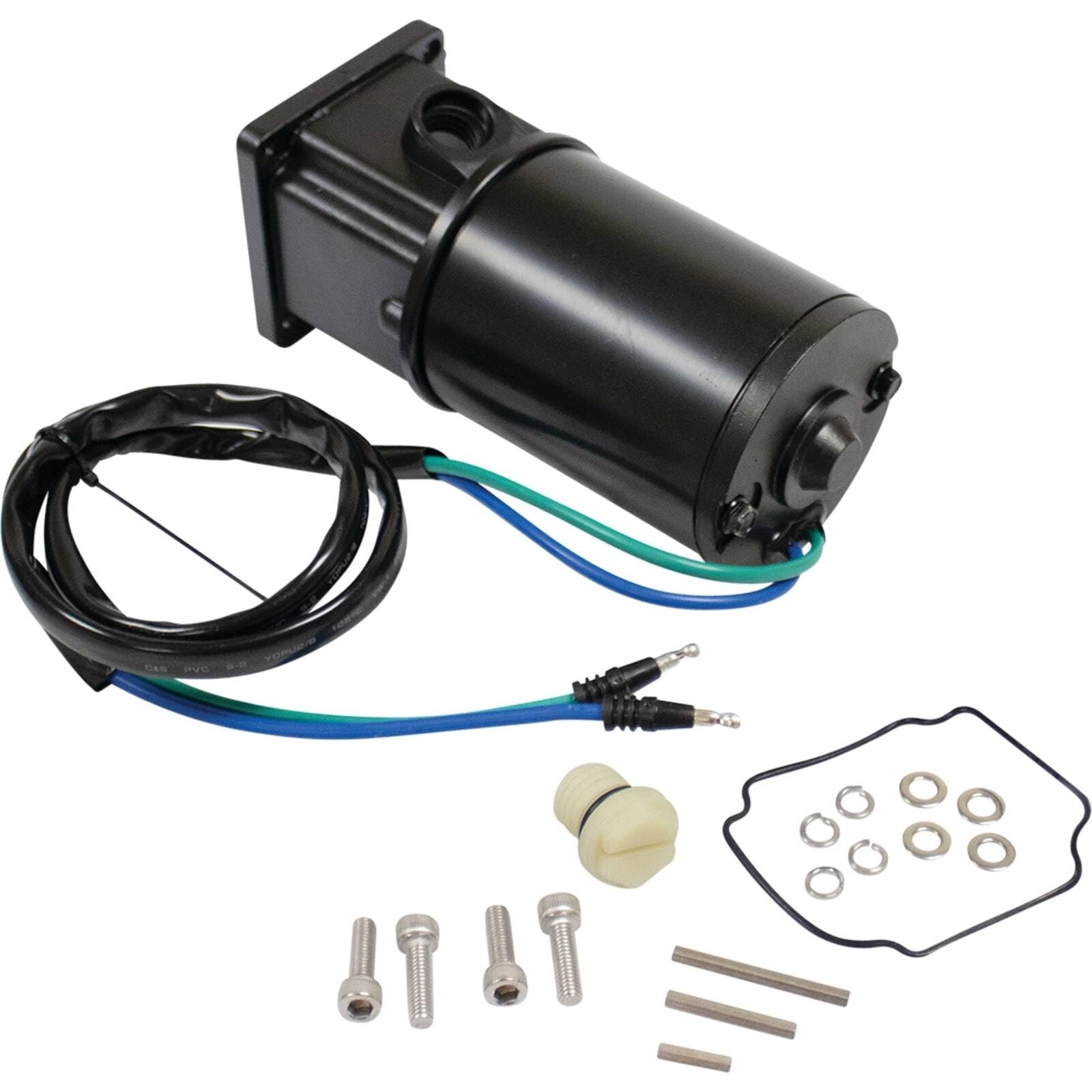

Power Trim Motor and Resevoir for Mercury & Mariner Outboards Specifications: Voltage:12 Volts Rotation:Reversible Field Hsg OD:72.8mm / 2.866in Overall Length:175mm / 6.890in Shaft Notes:Hollow Hex Shaft Approximate Weight:4.72 lbs / 2.15 kg Notes: 2-Wire Connection Includes (2) 3-1/2 Foot Wire Harness With Bullet Connectors and Hardware Kit With O-ring Applications: Force MarineTilt & Trim All Models 50-125 H.P. Mercury MarineTilt & Trim All Models 50-125 H.P. Replaces these part numbers: API Marine PT496NK-2 Arco Marine6276 Lester10827 Mercury Marine809885A1, 809885A2, 809885T2, 811674, 813447, 831447, 819479A1, 819480A1, 885654T1, 885654T2 Sierra Marine18-6777 Spider MarineTM10827

Product Features

• Specs: Tilt & Trim Motor, Voltage: 12, Rotation: RE, Dimension: Replacement Unit:, OD: 2.866in / 72.8mm, Length: 6.89in / 175mm, Shaft: Hollow Hex Shaft, Note: 2-Wire Connection, Note: Includes (2) 3-1/2 Foot Wire Harness w/Bullet, Connectors and Hardware Kit w/O-Ring, Brief: TILT MOTOR & RESERVOIR, Mercury / Mariner
• Replaces OEM Numbers: API MARINE: PT497NK, ARCO MARINE: 6276, ARROWHEAD: TRM0047, EMP UnitS: 4-6777, J & N: 430-22008, LESTER: 10827, 10850, Mercury MARINE: 809885A1, 809885A2, 809885T2, 811674, 811699, 813447, 819479A1, 819480A1, 893907A02, QUICKSILVER: 8M6007531, SIERRA MARINE: 18-6777, WAI: 10827N
• Compatible With/Replacement For: FORCE 1201 1990-1992, 1208 1990-1992, 120ELPT 1993-1994, 120ELPT 1996-1999, 120EXLPT 1993-1994, 120EXLPT 1996-1999, 1501 1989-1992, 1508 1989-1992, 150ELPT 1993-1994, 150EXLPT 1993-1994, 407 1992-1992, 408 1992-1992, 40EL 1993-1994, 40ELPT 1993-1994, 507 1991-1992, 508 1991-1992, 50EL 1993-1994, 50ELPT 1993-1994, 706 1991-1992, 708 1991-1992, 70EL 1993-1995, 70ELPT 1993-1995, 75EL 1996-1997, 75EL 1996-1999, 75ELPT 1996-1997
• 1-year warranty protects you after your purchase. We're confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we'll replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.
• 100% New Aftermarket Tilt & Trim Motor built to meet OEM specifications

---

---

Open Box Condition Notice:

Items are in perfect working condition. Items may have some minor signs of use, and the original protective wrapping may be absent or the item may be repackaged. All accessories will be included.

Return Policy:

You may return any item purchased within 30 days of receiving the shipment.
